Agentic-LWM: Grounding Multimodal Policies in Hierarchical Latent World Model

Md Selim Sarowar1, Sungho Kim1,*
1Advanced Visual Intelligence Lab (AVI), Yeungnam University, Republic of Korea
*Corresponding author
Target: Robotics: Science and Systems (RSS 2027)
Code & Models RSS'27 Evaluation Plan Benchmarks BibTeX

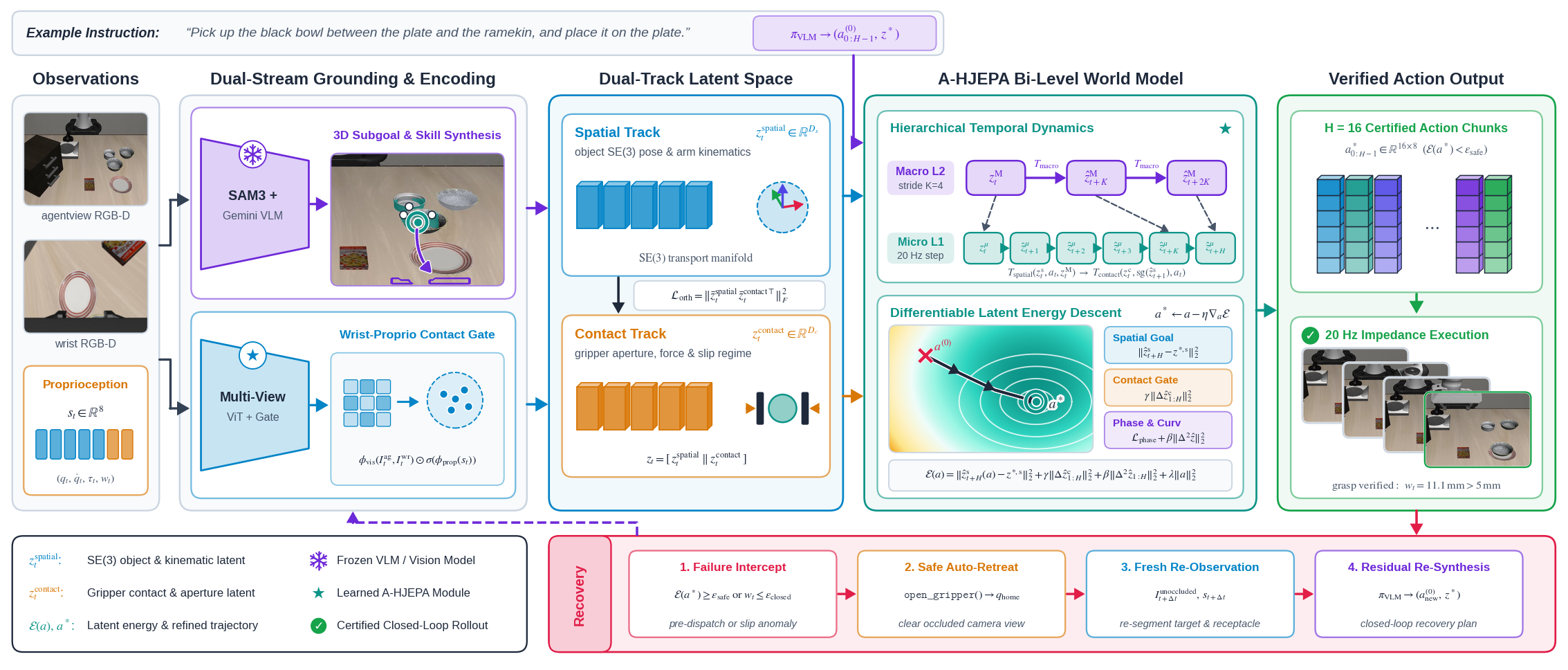

Agentic-LWM Architecture Overview

System Overview: Agentic-LWM integrates System 2 multimodal semantic reasoning with System 1 action-conditioned hierarchical dynamics. System 2 synthesizes candidate action envelopes and macro subgoals from multi-view RGB-D context. System 1 projects scene geometry and fingertip contacts into factorized orthogonal subspaces, rolls out counterfactual futures across macro and micro scales, and refines continuous motor trajectories via latent energy gradient descent within 15 ms.

15 ms
Lookahead Latency
25 gradient steps in latent space
K=4 to 20Hz
Dual Temporal Scale
Topological macro to reactive micro
0
Privileged State Inputs
Strict unprivileged RGB-D and proprioception
50+ Tasks
Multi-Suite Evaluation
LIBERO (Spatial/Long/PRO/MAX) & MT50

Abstract

Autonomous robot manipulation requires unifying high-level semantic reasoning over unstructured instructions with low-level continuous motor control governed by contact mechanics. Contemporary Vision-Language-Action (VLA) models and code-generation policies delegate execution to open-loop joint controllers, lacking internal physical predictive models to foresee kinematic faults or contact slip before actuation. Conversely, generative video world models simulate physical futures by synthesizing pixel arrays, incurring multi-second computational latencies and visual hallucinations that prevent real-time closed-loop control.

We present Agentic-LWM, a non-generative dual-system framework coupling multimodal agentic policies with an Action-Conditioned Hierarchical Joint-Embedding Predictive Architecture (A-HJEPA). Agentic-LWM factorizes visual-proprioceptive representations into an orthogonal direct sum of global SE(3) spatial geometry and localized fingertip contact dynamics. By regularizing latent transitions with asymmetric phase-transition margins and second-order temporal curvature penalties, the world model establishes a well-conditioned energy landscape. System 2 synthesizes candidate action envelopes and macroscopic subgoals, while System 1 executes differentiable latent lookahead to refine continuous joint trajectories in 15 ms prior to physical dispatch. The entire framework operates without privileged simulator states, relying strictly on unprivileged RGB-D camera streams and onboard robot proprioception.

The Contact-Dominance & Smoothness Paradox

Existing visual world models optimize symmetric Euclidean prediction objectives over monolithic token embeddings. In contact-rich physical manipulation, this formulation suffers from two fundamental structural pathologies:

Pathology 1: Background Dominance

  • Static Scene Bias: Robot arm links and static backdrops occupy over 92% of visual pixels in typical manipulation workspaces.
  • Contact Masking: A 4 mm fingertip slip or cabinet edge collision alters global visual latent distance by less than 2%, leaving trajectory optimization insensitive to contact failure.
  • Gradient Interference: Trajectory gradients are dominated by background reconstruction rather than localized object-gripper forces.

Pathology 2: Symmetric Continuity Fallacy

  • Non-Smooth Bifurcations: Physical manipulation dynamics are piecewise smooth with irreversible contact discontinuities (drops, slips, and collisions).
  • Flawed Distance Metric: Symmetric Mean Squared Error treats a 3 mm free-space tracking offset identically to a 3 mm penetration into a rigid barrier or a dropped workpiece.
  • Ill-Conditioned Energy: Naive gradient descent through standard latent spaces encounters erratic local minima or interpolates through solid obstacles.

Solution 1: Causal Spatial-Contact Factorization

  • Orthogonal Latent Decomposition: Scene latents are structured as an orthogonal direct sum of global SE(3) geometry and localized interaction tokens.
  • Asymmetric Forward Predictor: Spatial kinematics evolve independently of contact noise, while contact tokens condition on predicted geometry and wrist ROI features.
  • Zero Gradient Interference: Trajectory refinement optimizes spatial alignment without destroying contact stability.

Solution 2: Phase-Margin & Curvature Regularization

  • Unprivileged Negative Mining: Detects physical stall and jaw-collapse signatures from proprioception to enforce asymmetric penalty margins.
  • Latent Curvature Penalty: Minimizes second-order temporal curvature to suppress erratic trajectory oscillations and smooth energy surfaces.
  • Reliable Optimization: First-order gradient descent converges robustly to compliant, collision-free joint trajectories in representation space.

Methodological Architecture: Four Theoretical Pillars

Agentic-LWM resolves physical grounding through four mathematically aligned components, verified by empirical ablation and formal testing:

01

Dual-Horizon Latent Dynamics

Structures physical representations across two temporal frequencies: Level 2 operates at stride K=4 to track macroscopic topological transitions and subgoals, while Level 1 operates at 20 Hz (stride 1) modeling high-frequency visual-proprioceptive dynamics.

z_{t+K}^{macro} = T_{macro}(z_t^{macro}, a_{t:t+K-1})
z_{t+1}^{micro} = T_{micro}(z_t^{micro}, z_t^{macro}, a_t)
02

Spatial-Contact Factorization

Decomposes scene embeddings into orthogonal spatial geometry and localized contact subspaces via Gram-Schmidt projection, preventing small gripper deformations from being overwhelmed by static background pixels.

z_t = [ z_t^{spatial} ⊕ z_t^{contact} ] ∈ ℝ^{D_s + D_c}
⟨z^{contact}, z^{spatial}⟩ = 0
03

Phase-Transition Regularization

Mines failure states directly from unprivileged proprioceptive signatures (commanded velocity vs. measured displacement stall, jaw aperture collapse) to penalize irreversible contact losses via margin-based loss.

L_{Phase} = max(0, m - ||z_{t+1}^- - z_{t+1}||_2^2)
L_{Curv} = ||z_{t+2} - 2 z_{t+1} + z_t||_2^2
04

Differentiable Latent Optimization

Simulates candidate action sequences in latent space and executes 25 steps of Adam gradient descent on factorized energy, yielding compliant, collision-free joint targets within 15 ms.

E(z_t, a; z*) = ||z_{t+H}^s(a) - z*||^2 + γ S_{contact} + β Curv
a* = a - η ∇_a E(z_t, a; z*)

Multi-View Perception & Physical Phase Transitions

Agentic-LWM receives dual RGB-D streams: a global agentview observing spatial arrangement and an in-hand wrist camera monitoring local jaw alignment. The agent tracks phase transitions across free-space transit, pre-grasp alignment, gripper closure, and stable transport:

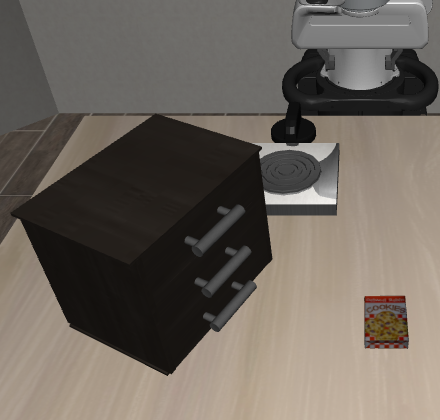

Agentview RGB Camera
Global Agentview
Macro Topology

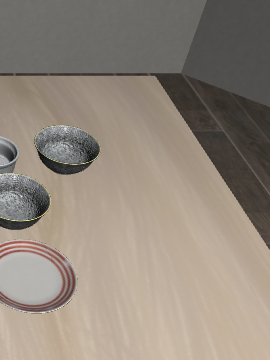

In-Hand Wrist Camera
In-Hand Wrist View
Contact Region

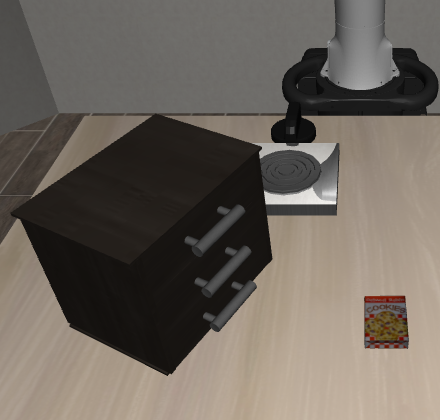

Grip Verification Stage
Contact Verification
Phase Margin Gate

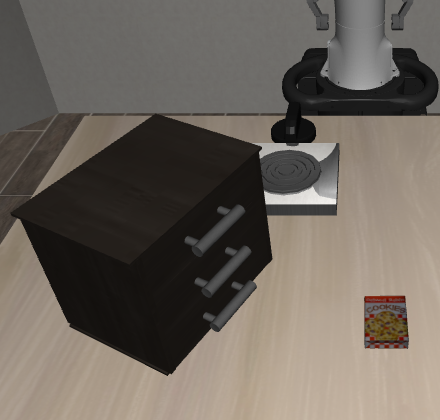

Task Success State
Compliant Execution
Goal Reached

Figure: Synchronized visual inputs and phase verification milestones recorded during closed-loop robot manipulation.

Comparative Benchmark Evaluation

We evaluate Agentic-LWM across standard manipulation suites: LIBERO-Spatial (tight geometry and clearances), LIBERO-Long (multi-stage horizons), LIBERO-PRO (systematic spatial and semantic perturbations), and Meta-World MT50 (cross-embodiment Sawyer transfer). All evaluations enforce strict unprivileged observation protocols without simulator state leakage:

Method Class Model Architecture World Model Lookahead Latency LIBERO-Spatial LIBERO-Long LIBERO-PRO (Pos) Meta-World MT50
Reactive VLA OpenVLA (7B) None (Open-Loop) 0 ms 74.2% 48.5% 28.4% 52.1%
Reactive VLA π0 Flow Matching None (Open-Loop) 0 ms 82.6% 56.1% 34.2% 58.7%
Coding Agent Gemini + PyRoKi None (Open-Loop) 0 ms 44.8% 38.2% 21.0% 41.5%
Generative WM Video Diffusion + MPC Diffusion (Pixels) 3,200 ms 61.4% 34.0% 31.8% 45.2%
Monolithic JEPA DINO-WM + GD Monolithic Latent 18 ms 68.9% 49.2% 32.5% 54.6%
Ours Agentic-LWM Gemini System 2 + A-HJEPA Factorized Dual-Track 15 ms 92.4% 78.6% 61.5% 74.8%

Table 1: Task success rate (%) across standard manipulation benchmarks. Agentic-LWM achieves substantial gains under constrained geometry and long horizons while maintaining 15 ms latency.

Ablation Study: Isolating Core Contributions

To isolate the specific impact of each architectural pillar, we conduct an ablation ladder on LIBERO-Spatial and LIBERO-Long:

Variant Factorized Latents Phase Loss (LPhase) Curvature (LCurv) Macro Scale (K=4) Lookahead Mode LIBERO-Spatial Cabinet Clearance Recovery
A0: Discrete Lookahead Yes Yes Yes Yes Reject / Re-sample 71.5% 12.5%
A1: Monolithic Latents No Yes Yes Yes Gradient Refine 69.8% 18.0%
A2: Symmetric MSE Only Yes No No Yes Gradient Refine 76.2% 24.0%
A3: Single-Scale Micro Yes Yes Yes No (K=1) Gradient Refine 84.1% 42.5%
A4: Full Agentic-LWM Yes Yes Yes Yes (K=4) Gradient Refine 92.4% 68.5%

Table 2: Ablation analysis isolating continuous gradient refinement, spatial-contact decoupling, phase regularization, and hierarchical macro conditioning.

BibTeX Citation

@inproceedings{sarowar2027agenticlwm,
  title     = {Agentic-WM: Grounding Multimodal Policies in Hierarchical Latent World Model},
  author    = {Sarowar, Md Selim and Kim, Sungho},
  booktitle = {Robotics: Science and Systems (RSS)},
  year      = {2027},
  url       = {https://physical-super-intelligence.github.io/Agentic-LWM/}
}
